Packaged Twin Blowers
Description
- Each contains a quadruplex centrifugal blower powered by a single precision ball-bearing motor.
- These widely-used Packaged Twin Blowers deliver air from more than 50% of their 17" width.
- Internal neoprene isolation mounts reduce transmission of vibration to the enclosure.
- Can be mounted on panel rails or into a cutout in an enclosure.
Features
- Capacities: 160 to 470 CFM.
- Heavy-gauge steel enclosures with EIA-notched flanges for rail mounting.
- Attractive 19 inch stainless steel grills.
- UR/CSA approved ball-bearing motors.
- Inlet air cools motor for longer life.
- Permanent filters.
- Exhaust guards included.
- Six foot (minimum) SJTW 3-wire cord.
Accessories
| Part No. |
Free Flow Air Delivery (CFM) |
RPM Nominal |
Ambient Temp. °F Min |
Ambient Temp. °F Max |
Units | Panel Height |
Ship Wt. lbs |
||||||||

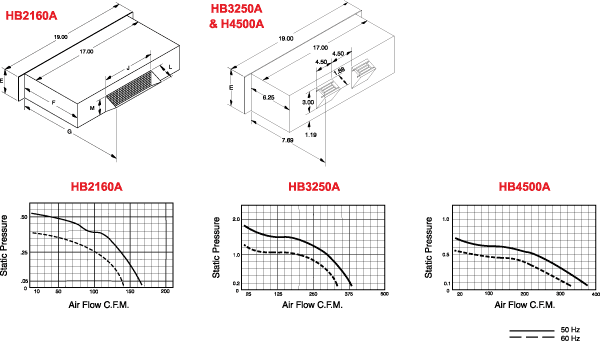

| E | F | G | H | J | K | L | M | N | |||||||
| HB2160A | 160 | 1500 | -20 | 250 | 2 | 3.50 | 8.75 | 10.50 | - | 7.50 | - | 2.25 | 2.25 | - | 10 |
| HB3250A | 300 | 3000 | -20 | 250 | 3 | 5.25 | 6.25 | 7.69 | 4.50 | 4.50 | 0.63 | 1.88 | 3.00 | 1.19 | 18 |
| HB4500A | 470 | 3250 | -20 | 250 | 4 | 7.00 | 8.25 | 10.25 | 4.63 | 4.75 | 1.00 | 2.50 | 4.00 | 1.44 | 23 |
